Microsoft Lync Server 2010 Enterprise Pool File Share Permissions

As we all know, Microsoft Lync Server 2010 carries the same model as OCS 2007 R2 where we’re required to have a folder share accessible for various services.  While setting up this share is much easier in Lync than OCS 2007 R2 (the former automatically does most of the heavy lifting for you while the latter requires a bit more work), I’m sure I will find myself having to verify the security permissions of these folders while troubleshooting services which are dependent on them.  This post serves to list out the folder tree and permissions of each folder which will probably come in handy if you don’t have another Lync environment to reference to.

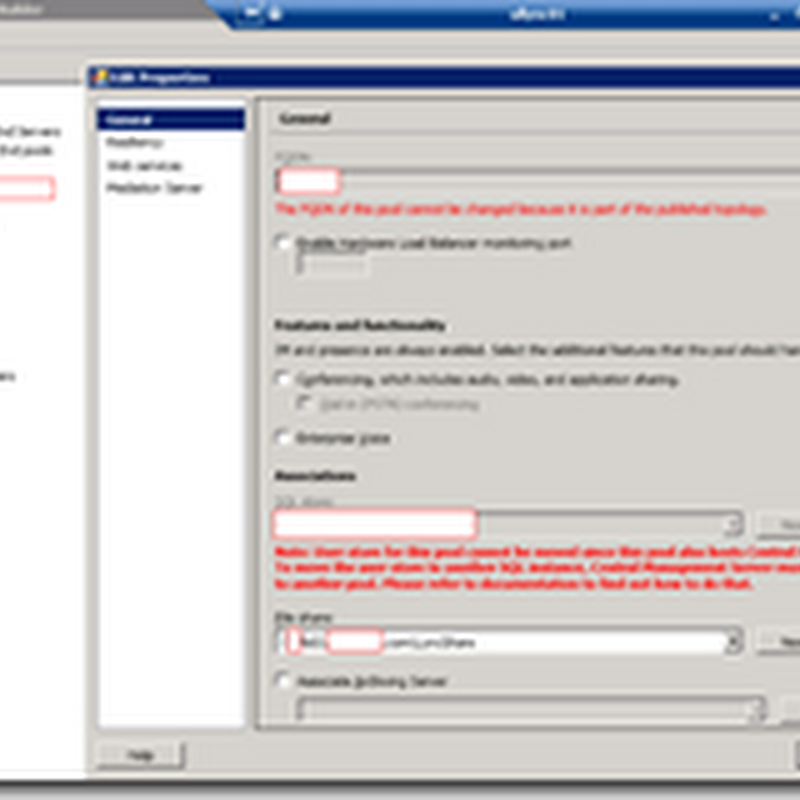

To determine where the folder share is located, simply open up the Lync Server 2010 Topology Builder, download the published topology, right-click on your pool, and choose Edit Properties.  From the window that opens up, review the File share field where you’ll see the server and the share in the form of a UNC path:


Opening the share listed in the File share field, you’ll see a tree similar to this:


1-ApplicationServer-1
AppServerFiles
CPS
PDP
Rgs
1-CentralMgmt-1
CMSFileStore
xds-master
replicas
<lyncserver>.domain.com
from-replica
to-replica
working
fta
<lyncserver>.domain.com
to-replica
replication
replicas
from-replica
to-replica
<lyncserver>.domain.com
tmp
1-WebServices-1
ABFiles
    000….
    000….
CollabContent
CollabMetadata
DeviceUpdateLogs
DeviceUpdateStore
LMStaticData
MeetingComplianceData
MeetingContent
MeetingFiles
MeetingMetaData
WebAuthStore

Since I was pretty excited about reviewing all the share permissions for these folders (not that I enjoy right clicking but more because I will be able to clearly document this for future use), I went ahead and did screenshots while taking notes of the permissions which I will list here:

LyncShare

**Note: This name will vary depending on what you choose to name it during your deployment.


All of the above RTC accounts have the same Sharing permissions: Change, Read.


1-ApplicationServer-1 Folder and Subtree


AppServerFiles

image image

CPS


Both accounts inherit the same permissions.

PDP


RGS


Both accounts inherit the same permissions.

1-CentralMgmt-1 Folder and Subtree


CMSFileStore


xds-master





replicas




<lyncServer.domain.com>


Accounts listed above inherit permissions.

from-replica


Both accounts listed above inherit permissions.

to-replica


Both accounts listed above inherit permissions.

working


Both accounts listed above inherit permissions.

fta


Both accounts listed above inherit permissions.

<lyncServer.domain.com>


Both accounts listed above inherit permissions.

to-replica


Both accounts listed above inherit permissions.

replication


Both accounts listed above inherit permissions.

replicas


Both accounts listed above inherit permissions.

<lyncServer.domain.com>


Both accounts listed above inherit permissions.

from-replica


Both accounts listed above inherit permissions.

to-replica


Both accounts listed above inherit permissions.

tmp


Both accounts listed above inherit permissions.

1-WebServices-1 Folder and Subtree


ABFiles

image image

00000000-0000-0000-0000….

image image



00000000-0000-0000-0000….


Account above inherits the special permissions.

CollabContent


CollabMetadata


DeviceUpdateLogs

image image

DeviceUpdateStore

image image

LMStaticData


MeetingComplianceData


MeetingContent


MeetingFiles


MeetingMetaData


WebAuthStore
